Products Description
I. Brand Introduction β JESSIA, Born for Efficient Steam
JESSIA specializes in the research and manufacturing of intelligent steam energy equipment, with a complete production system and strict quality control standards.

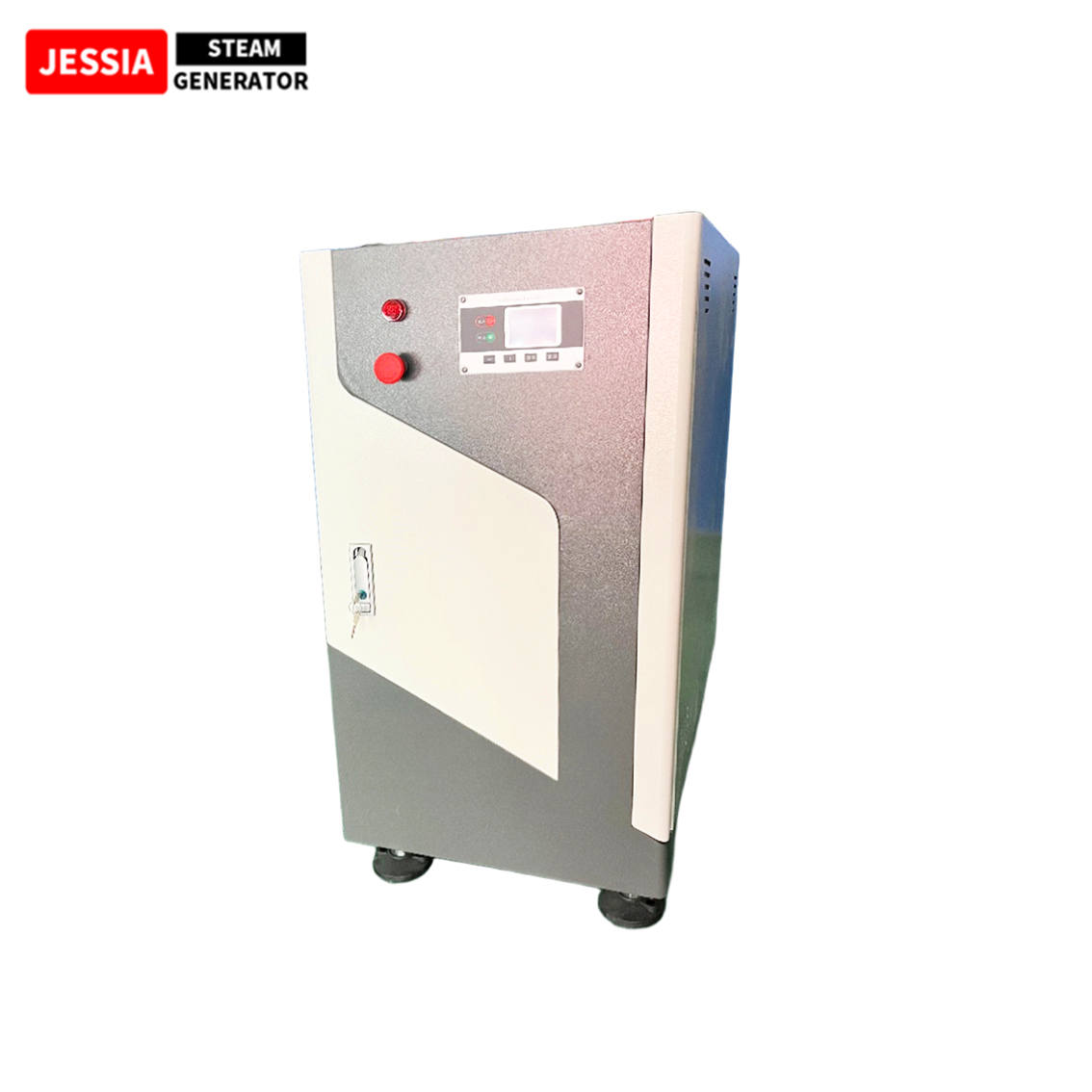

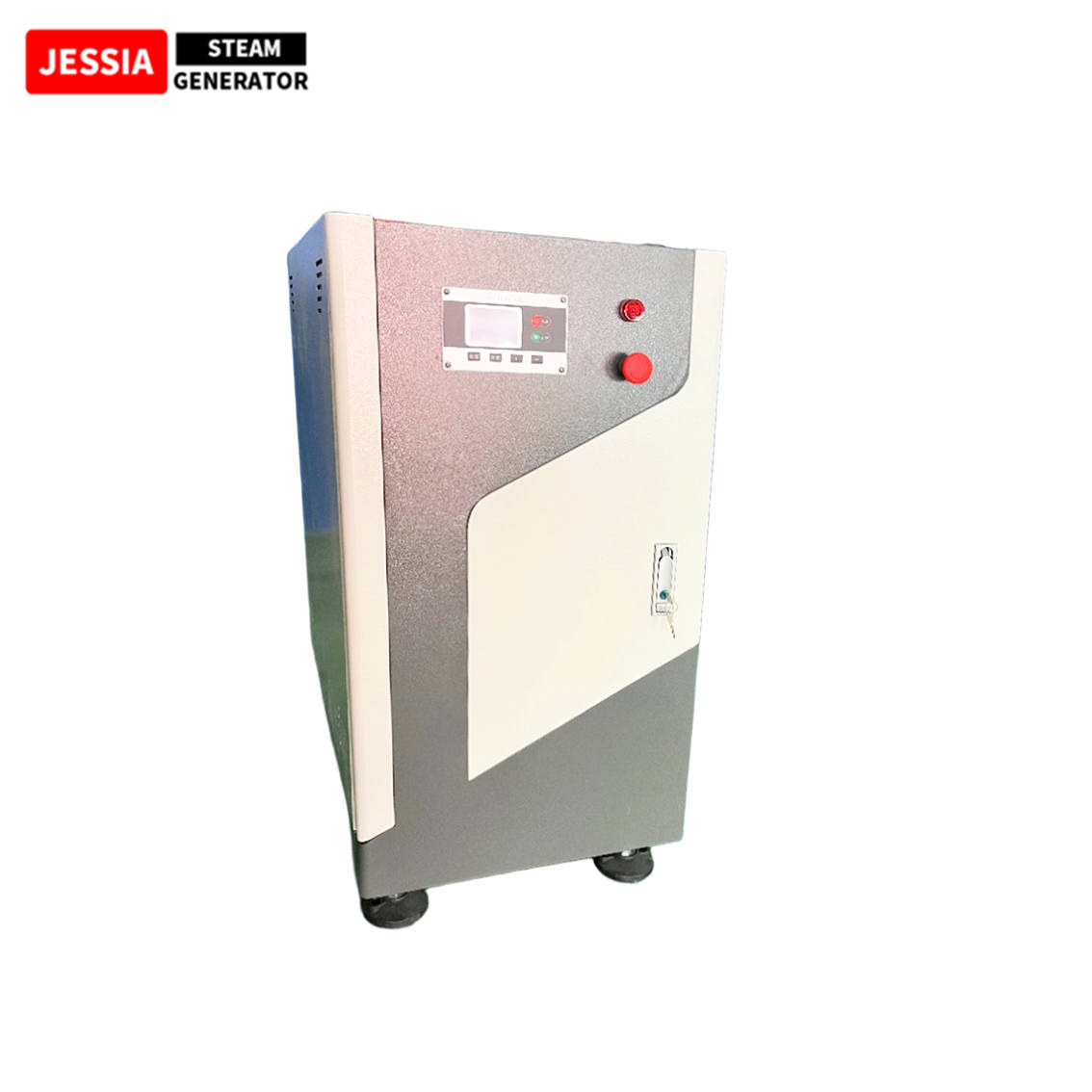

The 48KW electric steam generator is designed for high efficiency, eco-friendliness, safety, and smart operation. It is widely used in food processing, laundry and ironing, medical laboratories, chemical production, and catering chains.
Key Selling Points:
Factory direct sales with transparent pricing
Supports customized configurations
Full machine warranty with fast after-sales support
Standard pressure models are inspection-free
II. Product Overview β Rapid Heating, Stable Steam Output
The JESSIA 48KW electric steam generator converts electricity directly into heat and produces saturated steam within 2β3 minutes, achieving a thermal efficiency of over 98%.
The fully automatic system includes intelligent water supply, pressure and temperature control, low-water protection, and overheat alarm, providing safe, reliable, and easy operation.
Power: 48KW
Standard Pressure: 0.4β0.7 MPa (custom high-pressure options available)
Plug-and-play design, no inspection required
III. Key Advantages
| Advantage | JESSIA 48KW Features |
|---|---|
| Fast Steam Output | Produces saturated steam within 2β3 minutes |
| High Efficiency | Thermal efficiency β₯98%, high energy conversion |
| Inspection-Free Design | Standard pressure model meets inspection-free requirements |
| Customizable | Power, pressure, water tank capacity, and control system can be customized |
| Factory Direct | Direct supply from manufacturer, cost-effective |
| Safety & Reliability | Multi-protection: low water, overpressure, overheat, leakage |
| Intelligent Control | PLC or touchscreen system options |
| Easy Installation | Plug-and-play, no complex piping required |
| After-Sales Service | One-year warranty with fast spare parts support |
IV. Technical Specifications
| Item | 48KW Model |
|---|---|
| Rated Power | 48KW |
| Rated Voltage | 380V / 50Hz |
| Steam Output (Approx.) | 70kg/h |
| Working Pressure | 0.4β0.7 MPa (customizable) |
| Heating Time | ~2β3 minutes |
| Thermal Efficiency | β₯98% |
| Water Tank Capacity | 50β60L |
| Control Mode | Button / Touchscreen |
| Water Pump | Stainless steel, high-temperature resistant |
| Dimensions (mm) | 750Γ600Γ1200 |
| Weight | 95β110kg |
| Recommended Cable Size | β₯25mmΒ² |
V. Applications
| Industry | Application |
|---|---|
| Food Processing | Steaming, sterilization, sauce heating, bean product processing |
| Central Kitchens | Steam cabinets, soup boilers |
| Laundry & Ironing | Steam irons, dryers, laundry equipment |
| Medical & Laboratory | Sterilization of instruments, heating media |
| Chemical Industry | Reactor heating, pipeline temperature control |
| Hotels & Spas | Steam sauna systems |
| Auto Detailing | Steam cleaning |
| Farming & Breeding | High-temperature disinfection, hatchery heating |
VI. Safety Protection System
Automatic water supply
Low-water cut-off protection
Overpressure safety valve
Leakage protection device
Digital pressure and temperature display
Optional automatic blowdown function
VII. Intelligent Control System
Button or touchscreen operation
Optional PLC intelligent control system
Real-time monitoring of pressure, water level, and temperature
Optional remote control and data monitoring
VIII. Why Choose JESSIA?
| Comparison | Standard Steam Generator | JESSIA 48KW Steam Generator |
|---|---|---|
| Steam Output Speed | Slow | Fast, 2β3 minutes to produce steam |
| Control System | Manual | PLC or intelligent touchscreen |
| Manufacturing Mode | OEM assembly | Factory direct production |
| Inspection Requirement | Often required | Standard model inspection-free |
| Customization | Fixed specification | Fully customizable according to industry needs |
| After-Sales Service | Limited | Dedicated technical support and fast response |
IX. Model Selection Guide
| Application Scenario | Recommended Power |
|---|---|
| Medium-sized factories / Laundry | 36KW |
| Large production lines / Central kitchens | 48KW |
| Special industrial needs | Custom modular 60KWβ300KW systems |
Tags:
Technical parameter
Siam Foods Co., Ltd. (Thailand
Sunrise Pharmaceuticals Pvt. L
VietTex Garment Co., Ltd. (Vie
AquaPure Beverages PT (Indones
| No. | Industry | Typical Applications | Steam Parameter Requirements | Common Equipment Types |
|---|---|---|---|---|
| 1 | Food & Beverage | Cooking, sterilization, UHT processing, CIP cleaning, hot filling | 0.3β0.8 MPa, clean steam | Electric or gas-fired steam generators (with water softening or purified water systems) |
| 2 | Pharmaceutical & Biotech | Autoclaving, fermenter heating, lyophilization, purification systems | Pure steam (conductivity β€1.3 ΞΌS/cm) | Electric pure steam generators or multi-effect distillation systems |
| 3 | Textile & Dyeing | High-temperature dyeing, stentering, steaming, denim washing | 0.5β1.0 MPa, high-flow saturated steam | Gas or biomass-fired steam generators (600β2000 kg/h) |
| 4 | Chemical & Fine Chemicals | Reactor heating, distillation, solvent recovery, pipeline tracing | 0.6β1.6 MPa; some require superheated steam | Explosion-proof modular gas/oil-fired steam generators |
| 5 | Pulp, Paper & Packaging | Paper machine drying cylinders, corrugated board drying, coating drying | 0.4β0.8 MPa, high-dryness saturated steam | Large gas or biomass-fired steam generators |
| 6 | Hospitality / Commercial Laundry / Healthcare Laundry | Linen pressing, flatwork ironers, surgical gown sterilization | 0.2β0.5 MPa, intermittent steam supply | Small electric steam generators (<100 kg/h) |
| 7 | Agriculture & Agri-Processing | Grain drying, fruit/vegetable dehydration, tea fixation, feed cooking | 0.2β0.6 MPa, low-pressure saturated steam | Biomass or gas-fired steam generators |
| 8 | Rubber & Plastics | Tire vulcanization, injection mold heating, PVC foaming | 0.5β1.0 MPa, high-precision temperature control | Electric or gas-fired steam generators (with PID control) |
| 9 | Machinery & Heat Treatment | Parts cleaning, mold preheating, phosphating | 0.3β0.7 MPa, clean and contaminant-free | Compact electric steam generators |
| 10 | Brewing & Distilling | Mashing, distillation, sterilization, CIP cleaning | 0.3β0.6 MPa, food-grade steam | Stainless steel electric or gas-fired steam generators |
| 11 | Dairy | UHT sterilization, evaporation/concentration, fermentation tank heating | 0.3β0.6 MPa, clean and stable steam | Electric steam generators (with purified water system) |
| 12 | Electronics & Semiconductors | Wafer cleaning, cleanroom humidification, photoresist baking | Ultra-pure steam (UPW grade) | High-purity electric steam generators |
| 13 | Building Materials & Ceramics | Concrete curing, gypsum board drying, ceramic bisque firing | 0.2β0.5 MPa, high flow rate | Gas or biomass-fired steam generators |
| 14 | Environmental & Waste Treatment | Sludge drying, hazardous waste incineration support, leachate evaporation | 0.6β1.0 MPa | Corrosion-resistant steam generators |
| 15 | Oil & Gas / Energy | Heavy oil thermal recovery (EOR), pipeline tracing, LNG plant insulation | 1.0β2.0+ MPa, high dryness | Skid-mounted high-pressure steam generators / steam injection boilers |
| 16 | Marine & Offshore | Domestic steam supply, galley, tank cleaning | 0.3β0.5 MPa, compact and safe | Marine-grade small electric or oil-fired steam generators |
| 17 | Sauna & Wellness | Commercial steam rooms, spas, wellness centers | 0.1β0.3 MPa, low-pressure clean steam | Electric steam generators (5β50 kg/h) |
| 18 | Laboratory & Education | Teaching demos, small-scale reactions, material testing | Low flow, Β±1Β°C temperature control | Benchtop electric steam generators (1β6 kW) |
| 19 | Biofuels & New Energy | Esterification heating, distillation and purification | 0.4β0.8 MPa, continuous and stable | Biomass or electric steam systems |
| 20 | Cosmetics & Daily Chemicals | Emulsification heating, filling line warming, CIP cleaning | 0.2β0.5 MPa, odor-free and clean steam | Stainless steel electric steam generators |
